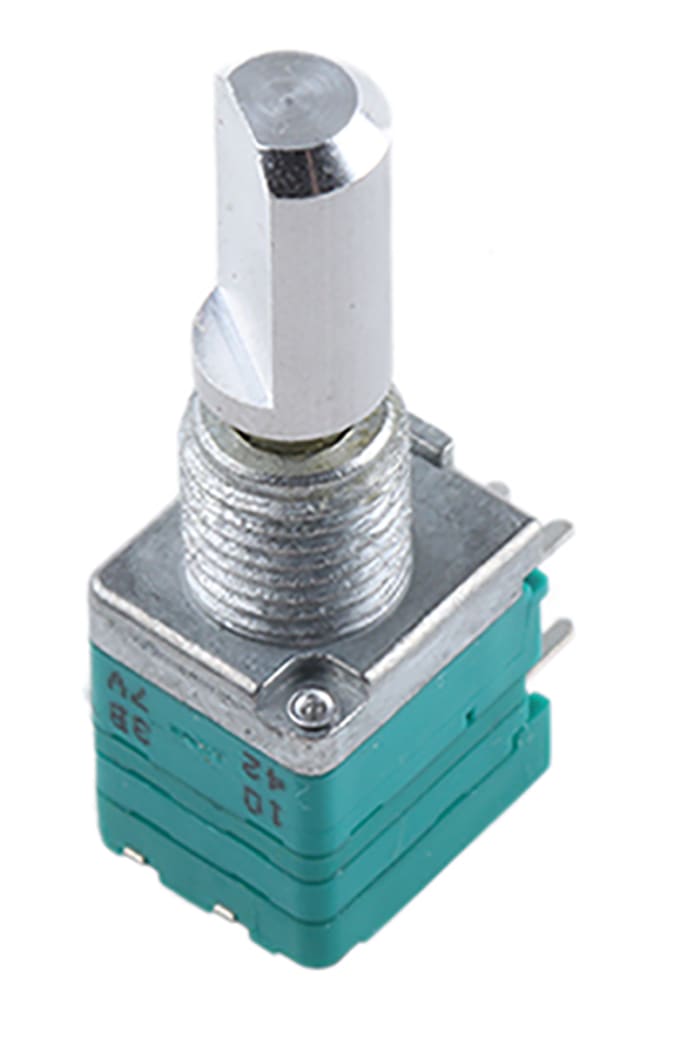

Alps Alpine RK097 10kΩ Rotary Potentiometer 1-Gang Through Hole, RK09711110EL
Technical Document
Specifications
Brand
Alps AlpinePotentiometer Type
Rotary
Maximum Resistance
10kΩ
Number of Gangs
1
Number of Turns
1
Power Rating
0.05W
Mounting Type
Through Hole
Termination Style
Pin
Shaft Length
20mm
Shaft Diameter
6 mm
Actuator Type
Knob Shaft
Series
RK097
Tolerance
±20%
Country of Origin
Japan
Product details
6mm Metal Shaft Multi-ganged
6 mm diameter potentiometer ideal for various types of control
Single-unit or Dual-unit suitable for audio tone or volume (7293518 is dual unit, and 7293511 is single unit)
Horizontal mounting direction
Flat type shaft
Applications in personal Audio and home appliances
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 10.53
€ 10.53 Each (Exc. VAT)
€ 12.43
€ 12.43 Each (inc. VAT)
1
€ 10.53
€ 10.53 Each (Exc. VAT)
€ 12.43
€ 12.43 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 10.53 |
| 25 - 49 | € 9.84 |
| 50 - 99 | € 9.02 |
| 100 - 249 | € 8.61 |
| 250+ | € 7.94 |
