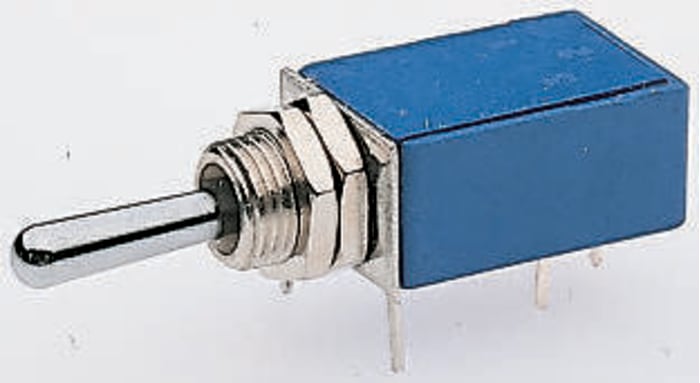

APEM Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal
Technical Document
Specifications
Brand
ApemContact Configuration
SPDT
Switch Operation
On-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
PCB
Terminal Type
Through Hole
Actuator Length
11.5mm
Actuator Material
Brass
Contact Resistance
0.02Ω
Contact Material
Silver
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+85°C
Country of Origin
France
Product details
Toggle Switches, Std, PCB Mount, 2A
Toggle switches with self-cleaning, wiping silver contacts
Two front pins provide additional support.
Threaded bushes apart from stock no. 317-695 which has plain bush
Connecting pins on a 0.1in pitch grid
Silver contacts
Chrome plated brass actuator and PBT case
Minimum load: 100mA @ 10V
Mechanical life: 100000 operations, electrical life: 20000 operations
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 14.09
€ 14.09 Each (Exc. VAT)
€ 16.63
€ 16.63 Each (inc. VAT)
1
€ 14.09
€ 14.09 Each (Exc. VAT)
€ 16.63
€ 16.63 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 14.09 |
| 25 - 49 | € 11.76 |
| 50 - 99 | € 10.91 |
| 100 - 249 | € 10.34 |
| 250+ | € 9.55 |
