EA Elektro-Automatik Switching Power Supply, EA-PS 805-12-12-80 Triple, 5 V dc, ±12 V dc, 2.5A, 80W, Triple Output, 90
Technical Document
Specifications
Brand
EA Elektro-AutomatikOutput Voltage
5 V dc, ±12 V dc
Output Current
2.5 A, 16A
Power Rating
80W
Number of Outputs
3
Input Voltage
90 → 264V ac
Mounting Type
Rack Mount
Package Type
Enclosed
Length
162mm
Width
133.5mm
Depth
40.64mm
Efficiency
89%
Maximum Temperature
+70°C
Minimum Temperature
0°C
Weight
640g
Country of Origin
Germany
Product details

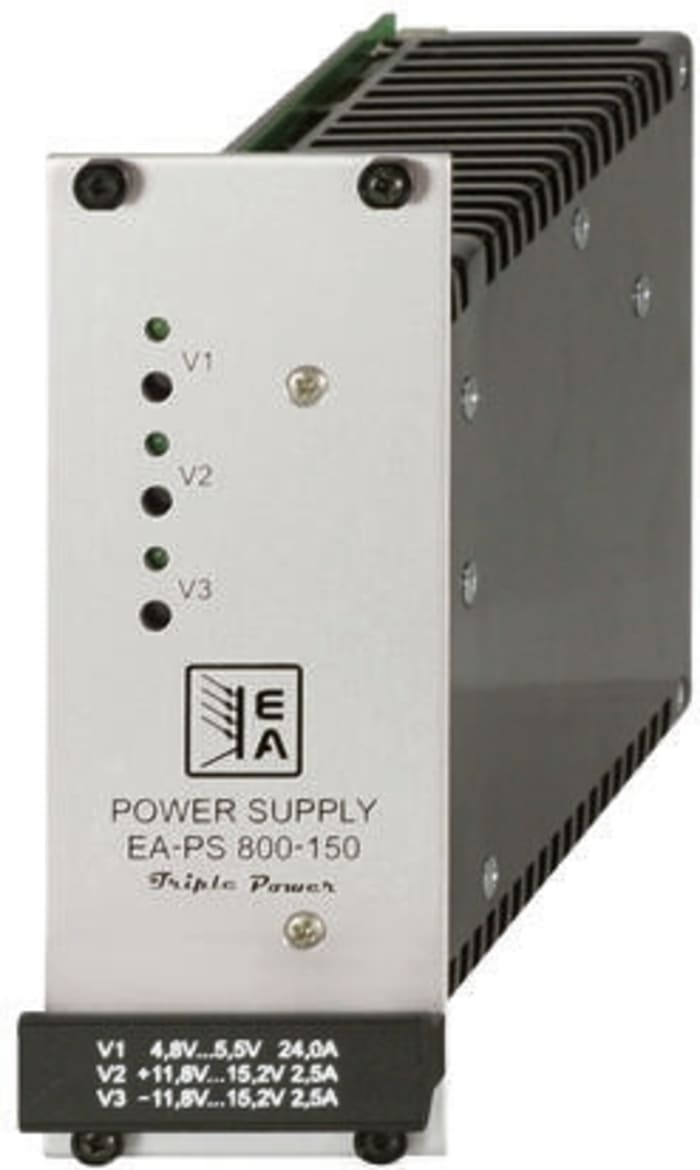

58 - 240W, Single/Multi Output, EA-PS 800 Series
These 19" plug-in power supplies in European format are for use in control, test and measurement, telecommunication and datacom applications. The active PFC with true wide-input range, fully independent adjustment and natural cooling suitable for ambient temperatures of up to 70°C make them ideal where reliability and performance are required.
Europe-format sizes, DIN 41494 compliant
Wide input voltage range with active PFC
Output voltage adjustable by trimmer
Up to 92% efficiency by combining fly-back converter and synchronous rectifier principle
No minimum load required and no cross regulation effects
Remote sense, over voltage protection, over temperature protection, inhibit, front panel LEDs, remote on/off and power fail signal
Electrical connection via H15 male connector according to DIN 41612
Approvals
UL, TUV
Standards
EN60950, EN55022
€ 1,178.31
€ 1,178.31 Each (Exc. VAT)
€ 1,390.41
€ 1,390.41 Each (inc. VAT)
1
€ 1,178.31
€ 1,178.31 Each (Exc. VAT)
€ 1,390.41
€ 1,390.41 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 1,178.31 |
| 5 - 9 | € 1,160.56 |
| 10 - 24 | € 1,141.71 |
| 25 - 49 | € 1,121.75 |
| 50+ | € 1,100.73 |
