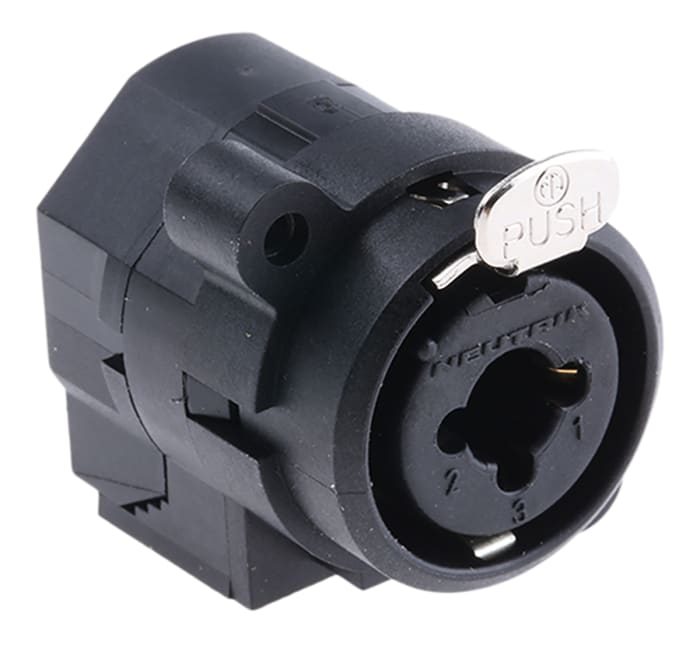

Neutrik Chassis Mount XLR Connector, Female, 50 V, 3 Way, Gold over Nickel Plating
Technical Document
Specifications
Brand
NeutrikNumber Of Contacts
3
Gender
Female
Mounting Type
Chassis Mount
Body Orientation
Straight
Colour
Black
Contact Plating
Gold over Nickel
Housing Material
Polyamide
Termination Method
Solder
Current Rating
7.5A
Voltage Rating
50 V
Contact Material
Bronze
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+80°C
Country of Origin
Liechtenstein
Product details
XLR/Jack Combined Socket
This innovative range of sockets allow for XLR/ " Jack connection in a single XLR shell. They incorporate metal brackets with M3 threads at the front end and snap in locks to the rear, to provide a firm mechanical link between the board and the chassis. Jack plug retention is via a spring element which is completely separated from the contacts.
Low contact pressure on jack
PCB 6 way with straight or right angle pins for either vertical (V) or horizontal (H) mounting
Solder 6 or 9 way versions (9 way switched)
Warning
Not to be used as mains connectors
Stock information temporarily unavailable.
Please check again later.
€ 6.16
Each (Exc. VAT)
€ 7.27
Each (inc. VAT)
1
€ 6.16
Each (Exc. VAT)
€ 7.27
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 14 | € 6.16 |
| 15 - 49 | € 5.42 |
| 50 - 99 | € 5.36 |
| 100+ | € 5.09 |
