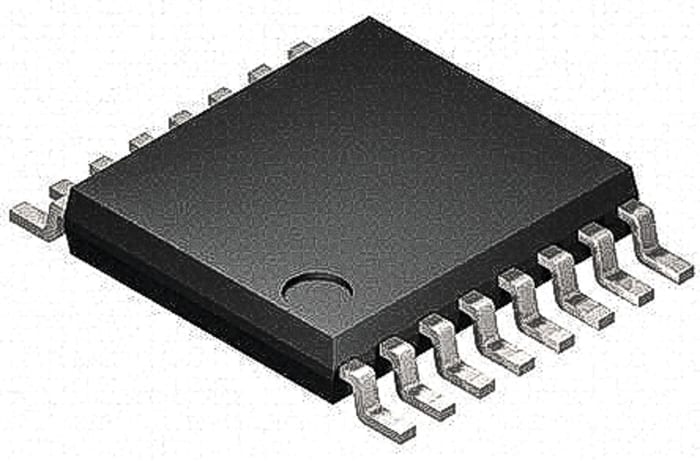

Nexperia 74HC595PW,112 8-stage Surface Mount Shift Register HC, 16-Pin TSSOP
Technical Document
Specifications
Brand
NexperiaPackage Type
TSSOP
Logic Function
Shift Register
Number of Stages
8
Logic Family
HC
Mounting Type
Surface Mount
Operation Mode
Serial to Serial, Parallel
Number Of Elements
1
Pin Count
16
Minimum Operating Supply Voltage
2 V
Maximum Operating Supply Voltage
6 V
Dimensions
5.1 x 4.5 x 0.95mm
Minimum Operating Temperature
-40 °C
Reset Type
Asynchronous
Maximum Operating Temperature
125 °C
Direction Type
Uni-Directional
Triggering Type
Positive Edge
Product details
74HC Family Counters & Shift Registers, Nexperia
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 48.00
€ 0.50 Each (In a Tube of 96) (Exc. VAT)
€ 56.64
€ 0.59 Each (In a Tube of 96) (inc. VAT)
96
€ 48.00
€ 0.50 Each (In a Tube of 96) (Exc. VAT)
€ 56.64
€ 0.59 Each (In a Tube of 96) (inc. VAT)
96
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Tube |
|---|---|---|
| 96 - 96 | € 0.50 | € 48.00 |
| 192 - 384 | € 0.28 | € 26.88 |
| 480 - 864 | € 0.25 | € 24.00 |
| 960 - 1824 | € 0.25 | € 24.00 |
| 1920+ | € 0.25 | € 24.00 |
