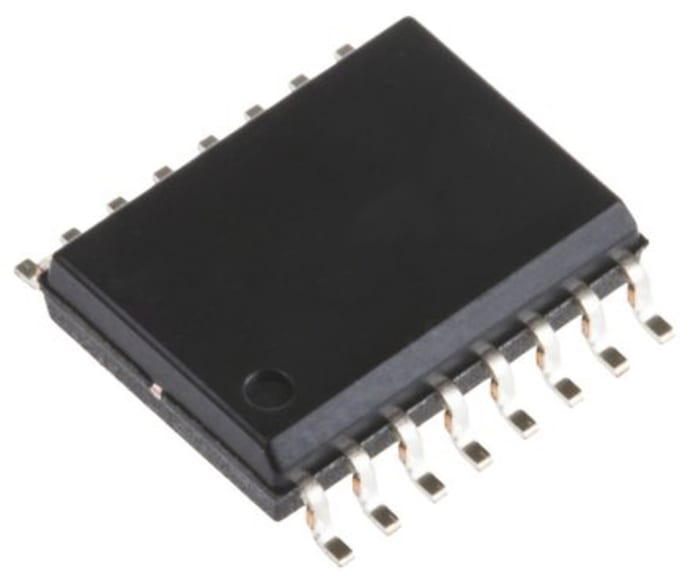

onsemi NCP1399APDR2G, PWM Controller, 20 V, 750 kHz 16-Pin, SOIC
Technical Document
Specifications
Brand
onsemiMaximum Switching Frequency
750 kHz
Output Current
0.5 A, 1 A
Control Method
Current
Mounting Type
Surface Mount
Fall Time
50ns
Rise Time
80ns
Package Type
SOIC
Pin Count
16
Topology
Resonant
Maximum Duty Cycle
50%
Dimensions
10 x 3.9 x 1.75mm
Length
10mm
PWM Controller Type
Current Mode
Width
3.9mm
Height
1.75mm
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Maximum Operating Supply Voltage
20 V
Country of Origin
Philippines
