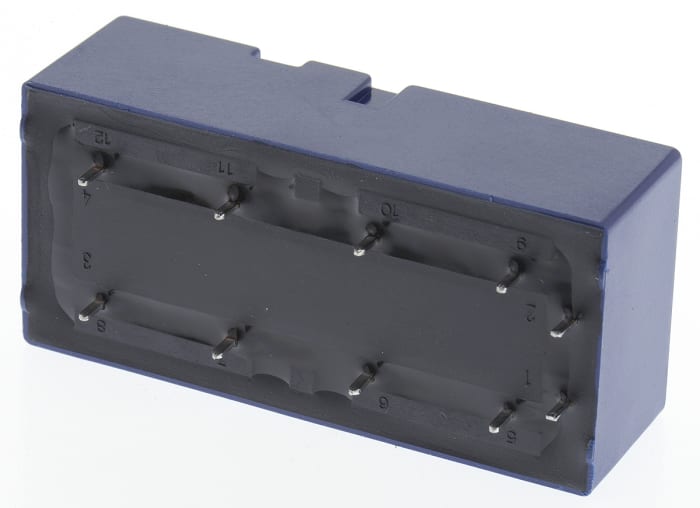

Panasonic PCB Force Guided Relay, 24 V dc Coil Voltage, 2-Pole, DPDT
Technical Document
Specifications
Brand
PanasonicCoil Voltage
24 V dc
Product Type
Force Guided Relay
Mount Type
PCB
Contact Configuration
DPDT
Number of Poles
2
Coil Resistance
1.152kΩ
Switching Current
6 A
Coil Power
500mW
Minimum Operating Temperature
-40°C
Terminal Type
Solder
Maximum Operating Temperature
70°C
Height
16mm
Depth
25mm
Length
53.3mm
Isolation Coil To Contact
2.5kVrms
Series
SF2D
Contact Material
Gold Plated
Country of Origin
Czech Republic
Product details
Force Guided Safety Relay - SF2 Series
Used in machines, apparatus or installations that need to meet special safety requirements (presses, combustion, railway, medical)
Maximum switching voltage: 400V
Operating temperature range: -40°C to +70°C
Contact material: AgSnO2 with Au flash
Approvals
cUL, TUV, SEV
Standards
EN50205 Type A, IEC60664-1 III/4kV
Stock information temporarily unavailable.
€ 59.90
€ 59.90 Each (Exc. VAT)
€ 70.68
€ 70.68 Each (inc. VAT)
1
€ 59.90
€ 59.90 Each (Exc. VAT)
€ 70.68
€ 70.68 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 59.90 |
| 5 - 9 | € 59.01 |
| 10+ | € 57.31 |
