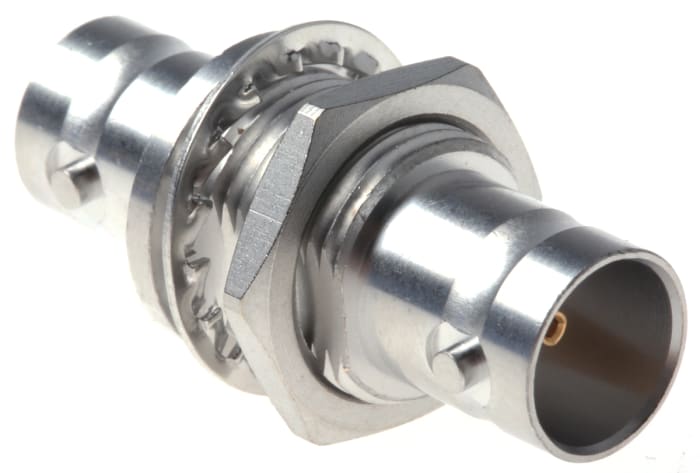

Straight 75Ω RF Adapter BNC Socket to BNC Socket 0 → 1.5GHz
Technical Document
Specifications
Brand
RadiallAdapter Type A
BNC
Adapter Type B
BNC
Gender A
Socket
Gender B
Socket
Impedance
75Ω
Body Orientation
Straight
Operating Frequency
0 → 1.5GHz
Contact Plating
Gold over Nickel
Length
32.5mm
Body Plating
Nickel
Contact Material
Beryllium Copper
Product details
BNC connectors
Series of BNC connectors for all types of BNC-BNC adaptation.
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 24.68
Each (Exc. VAT)
€ 29.12
Each (inc. VAT)
1
€ 24.68
Each (Exc. VAT)
€ 29.12
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 24 | € 24.68 |
| 25 - 49 | € 23.13 |
| 50 - 99 | € 22.30 |
| 100 - 249 | € 21.49 |
| 250+ | € 20.69 |
