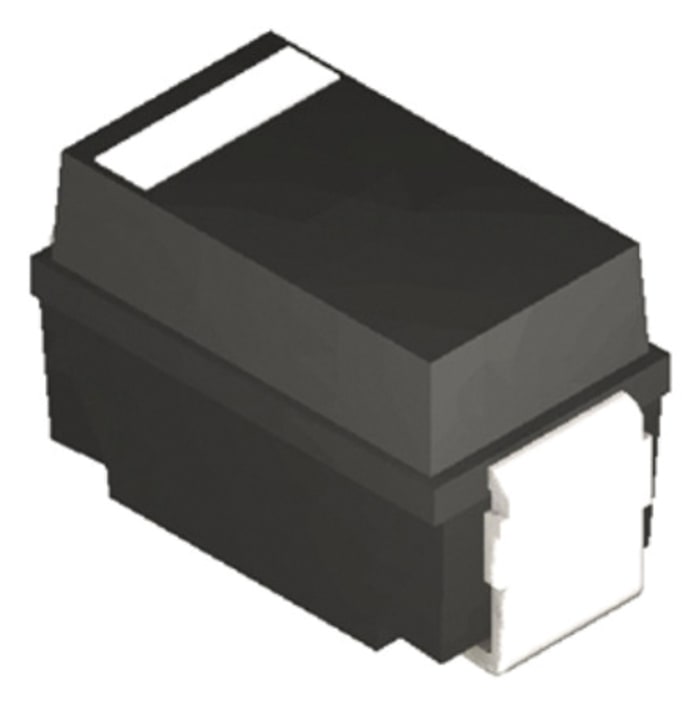

STMicroelectronics 1000V 1A, Rectifier Diode, 2-Pin DO-214AC STTH110A
Technical Document
Specifications
Brand
STMicroelectronicsMounting Type
Surface Mount
Package Type
DO-214AC (SMA)
Maximum Continuous Forward Current
1A
Peak Reverse Repetitive Voltage
1000V
Diode Configuration
Single
Rectifier Type
Switching
Diode Type
Rectifier
Pin Count
2
Maximum Forward Voltage Drop
1.7V
Number of Elements per Chip
1
Diode Technology
Silicon Junction
Peak Reverse Recovery Time
75ns
Peak Non-Repetitive Forward Surge Current
18A
Product details
Rectifier Diodes, 1A to 3A, STMicroelectronics
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 0.48
Each (In a Pack of 20) (Exc. VAT)
€ 0.566
Each (In a Pack of 20) (inc. VAT)
20
€ 0.48
Each (In a Pack of 20) (Exc. VAT)
€ 0.566
Each (In a Pack of 20) (inc. VAT)
20
Buy in bulk
| quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 80 | € 0.48 | € 9.60 |
| 100 - 180 | € 0.48 | € 9.60 |
| 200 - 480 | € 0.42 | € 8.40 |
| 500 - 980 | € 0.39 | € 7.80 |
| 1000+ | € 0.39 | € 7.80 |
