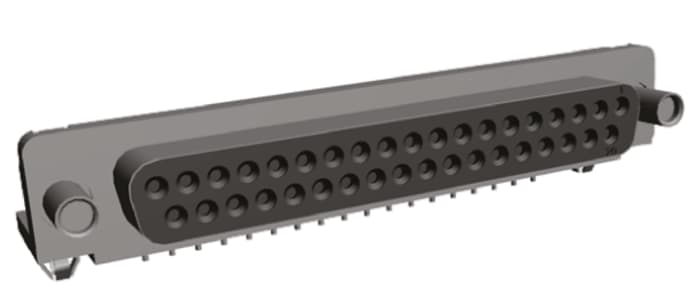

TE Connectivity AMPLIMITE HD-20 37 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector, with 4 to 40 UNC Threaded

RS Stock No.: 446-5192Brand: TE ConnectivityManufacturers Part No.: 5747847-4
brand-logo
View all in D Sub Connectors

Technical Document

Specifications

Brand

TE Connectivity

Number of Contacts

37

Product Type

D-Sub Connector

Orientation

Right Angle

Mount Type

Through Hole

Connector Gender

Female

D-Sub Shell Size

D

Mounting Hardware

4 to 40 UNC Threaded Insert

Housing Material

Thermoplastic

Minimum Operating Temperature

-55°C

Termination Type

Solder

Contact Gender

Female

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS

Series

AMPLIMITE HD-20

Contact Material

Phosphor Bronze

Contact Plating

Gold over Nickel

Pitch

2.75mm
