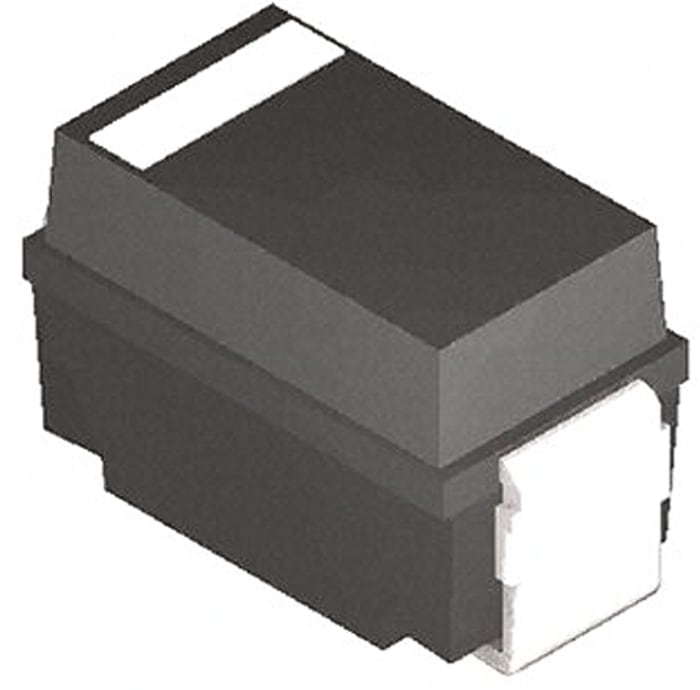

Vishay 100V 1.5A, Schottky Diode, 2-Pin DO-214AC VS-10MQ100-M3/5AT
Technical Document
Specifications
Brand
VishayMounting Type
Surface Mount
Package Type
DO-214AC (SMA)
Maximum Continuous Forward Current
1.5A
Peak Reverse Repetitive Voltage
100V
Diode Configuration
Single
Rectifier Type
Schottky Rectifier
Diode Type
Schottky
Pin Count
2
Maximum Forward Voltage Drop
850mV
Number of Elements per Chip
1
Diode Technology
Schottky
Peak Non-Repetitive Forward Surge Current
120A
Product details
Vishay High Performance Schottky Rectifier, VS-10MQ100-M3
DESCRIPTION
The VS-10MQ100-M3 surface mount Schottky rectifier has
been designed for applications requiring low forward drop
and very small foot prints on PC boards. Typical
applications are in disk drives, switching power supplies,
converters, freewheeling diodes, battery charging, and
reverse battery protection.
FEATURES
• Low forward voltage drop
• Guard ring for enhanced ruggedness and long
term reliability
• Small foot print, surface mountable
• High frequency operation
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
Diodes and Rectifiers, Vishay Semiconductor
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 3.50
€ 0.35 Each (In a Pack of 10) (Exc. VAT)
€ 4.13
€ 0.413 Each (In a Pack of 10) (inc. VAT)
Standard
10
€ 3.50
€ 0.35 Each (In a Pack of 10) (Exc. VAT)
€ 4.13
€ 0.413 Each (In a Pack of 10) (inc. VAT)
Standard
10
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 90 | € 0.35 | € 3.50 |
| 100 - 490 | € 0.32 | € 3.20 |
| 500 - 990 | € 0.32 | € 3.20 |
| 1000 - 2490 | € 0.32 | € 3.20 |
| 2500+ | € 0.32 | € 3.20 |
