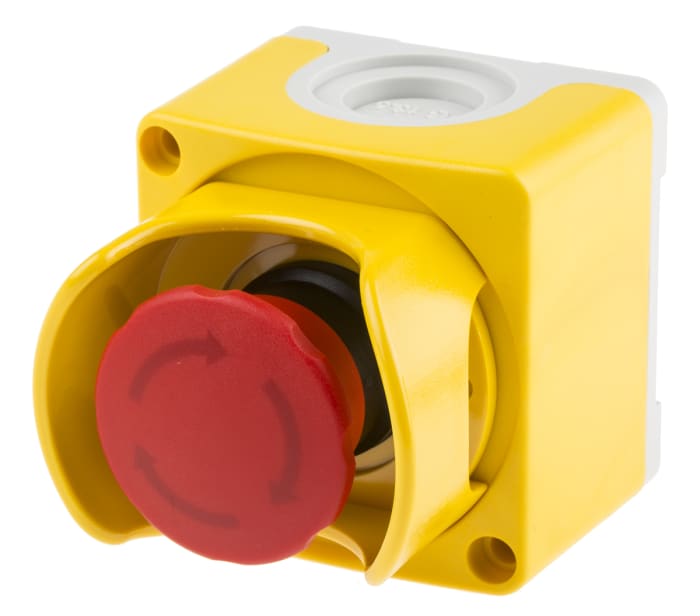

ABB 1SFA Series Twist Release Emergency Stop Push Button, Surface Mount, 30 mm Cutout, 2 NC, IP66, IP67, IP69K
Technical Document
Specifications
Brand
ABBProduct Type
Emergency Stop Push Button
Mount Type
Surface Mount
Cutout Diameter
30mm
Contact Configuration
2 NC
Housing Material
Plastic
Push Button Actuation
Twist Release
Illuminated
No
Series
1SFA
IP Rating
IP66, IP67, IP69K
Colour
Red
Number of Auxiliary Contacts
6
Depth
65mm
Head Diameter
40mm
Length
101mm
Hazardous Area Certification
No
Standards/Approvals
IEC 60947-5-5, 3R, 4X, UL/NEMA Type 1
Width
74.4mm
Push Button Material
Plastic
Country of Origin
China
Product details
Emergency stop switch housing and combinations
Choosing the right Emergency Stop Device is vital in order to increase the safety for operators and equipment.
The range is very impressive, which fulfil the IEC 60947-5-5 standards for Emergency Stop Devices.
The Head Emergency Buttons can be used in the following areas:
•Food and Beverage
•Pharmaceutical Industry
•Rail and Transport Industry
•Automotive Industry
•Mining and Quarrying Industry
•Factory Automation Industry
The range has an IP67 and IP69K standards, which means:
•IP67 (rated as "dust tight" and protected against immersion)
•IP69K (rated as ’’complete assurance ’’provides the highest protection rating on the scale)
ABB 22.5mm Compact Range
A comprehensive range of components for the user who wants a reliable and cost-effective solution to meet their needs.
Stock information temporarily unavailable.
€ 77.20
€ 77.20 Each (Exc. VAT)
€ 91.10
€ 91.10 Each (inc. VAT)
1
€ 77.20
€ 77.20 Each (Exc. VAT)
€ 91.10
€ 91.10 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 77.20 |
| 5 - 9 | € 74.49 |
| 10 - 24 | € 71.66 |
| 25 - 49 | € 68.60 |
| 50+ | € 65.67 |
