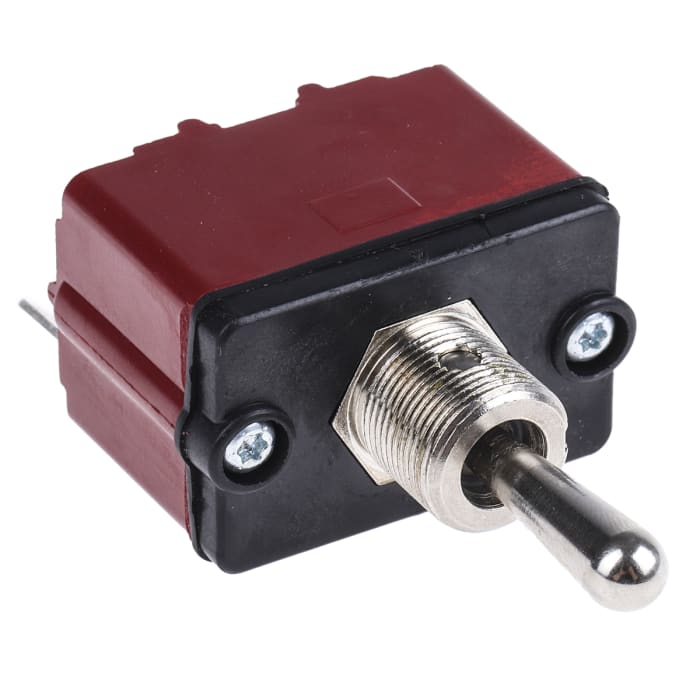

APEM Toggle Switch, Panel Mount, (On)-Off-(On), SPST, Tab Terminal, 28V dc
Technical Document
Specifications
Brand
ApemContact Configuration
SPST
Switch Operation
(On)-Off-(On)
Contact Current Rating
12 A
Mounting Type
Panel Mount
Terminal Type
Tab
IP Rating
IP67
Actuator Length
17.5mm
Actuator Material
Brass
Voltage Rating
28V dc
Contact Resistance
10mΩ
Contact Material
Silver
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Maximum Operating Temperature
+85°C
Country of Origin
France
Product details
3600NF Series - Sealed IP65
Sealed toggle switches with solid silver contacts especially suitable for external applications
An internal o-ring together with the sealing boot provides a double level of protection
0.25in. solder/quick connect terminals
Brass actuator and Phenolic case
Approvals
UL
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 53.21
€ 53.21 Each (Exc. VAT)
€ 62.79
€ 62.79 Each (inc. VAT)
1
€ 53.21
€ 53.21 Each (Exc. VAT)
€ 62.79
€ 62.79 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | € 53.21 |
| 25 - 49 | € 44.32 |
| 50 - 99 | € 41.14 |
| 100 - 249 | € 38.96 |
| 250+ | € 36.13 |
