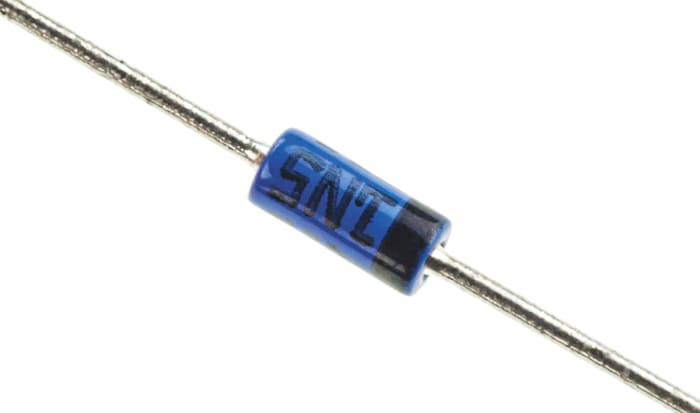

STMicroelectronics 70 V 15 mA Diode Schottky 2-Pin DO-35
Technical Document
Specifications
Brand
STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type
DO-35
Maximum Continuous Forward Current If
15mA
Peak Reverse Repetitive Voltage Vrrm
70V
Diode Configuration
Single
Rectifier Type
Schottky
Pin Count
2
Maximum Forward Voltage Vf
410mV
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
15mA
Peak Reverse Current Ir
200nA
Maximum Operating Temperature
200°C
Height
2mm
Diameter
2 mm
Standards/Approvals
No
Width
2 mm
Length
4.5mm
Automotive Standard
No
Product details
Schottky Barrier Diodes, up to 1A, STMicroelectronics
High power, efficiency and density.
Diodes and Rectifiers, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 3.00
€ 0.03 Each (Supplied on a Reel) (Exc. VAT)
€ 3.54
€ 0.035 Each (Supplied on a Reel) (inc. VAT)
Production pack (Reel)
100
€ 3.00
€ 0.03 Each (Supplied on a Reel) (Exc. VAT)
€ 3.54
€ 0.035 Each (Supplied on a Reel) (inc. VAT)
Stock information temporarily unavailable.
Production pack (Reel)
100
| Quantity | Unit price | Per Reel |
|---|---|---|
| 100 - 450 | € 0.03 | € 1.50 |
| 500+ | € 0.03 | € 1.50 |
